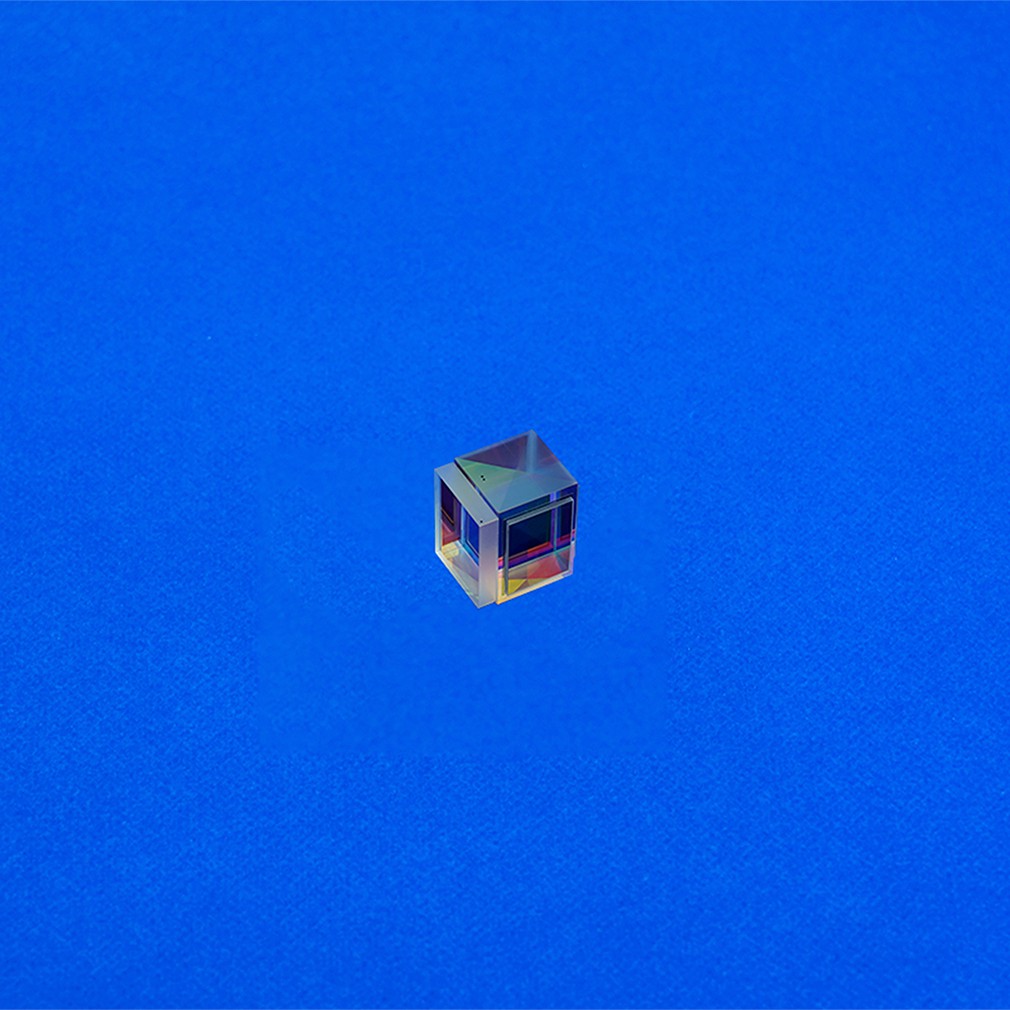

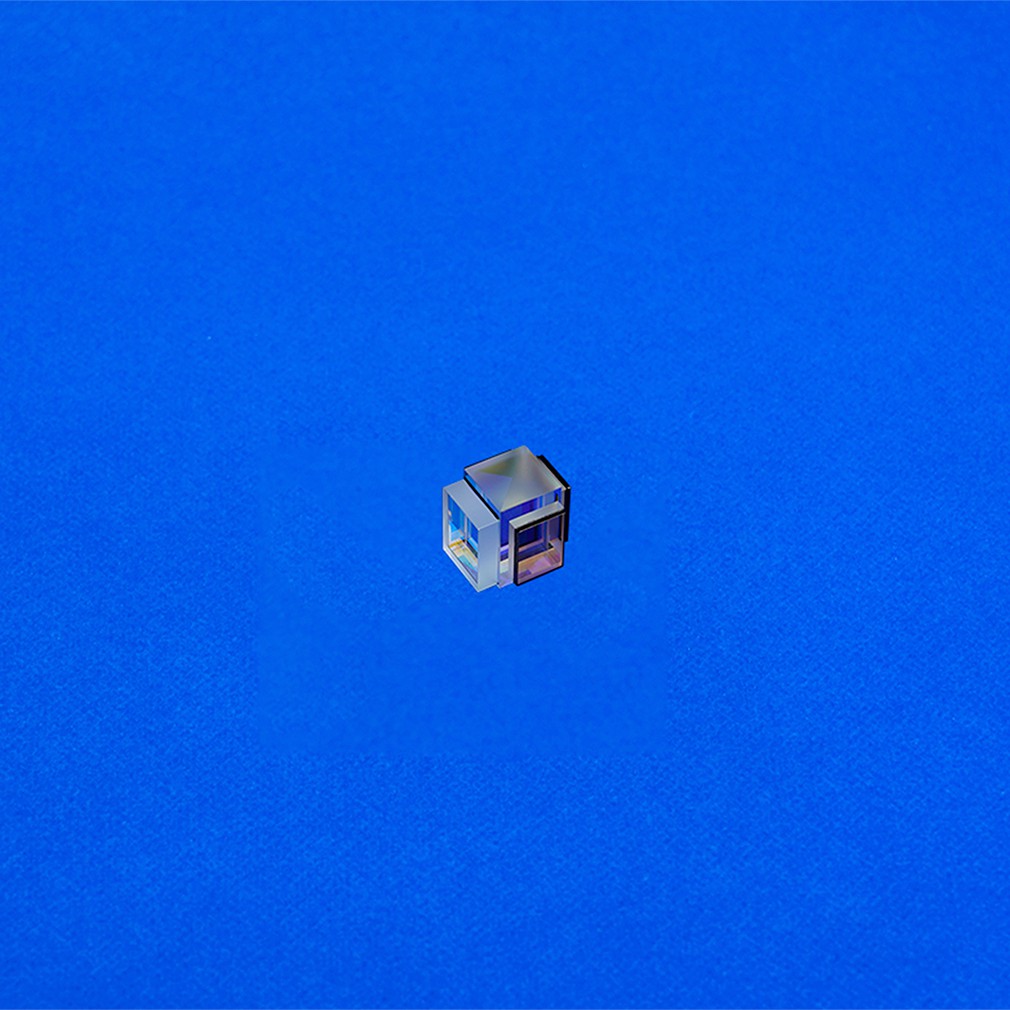

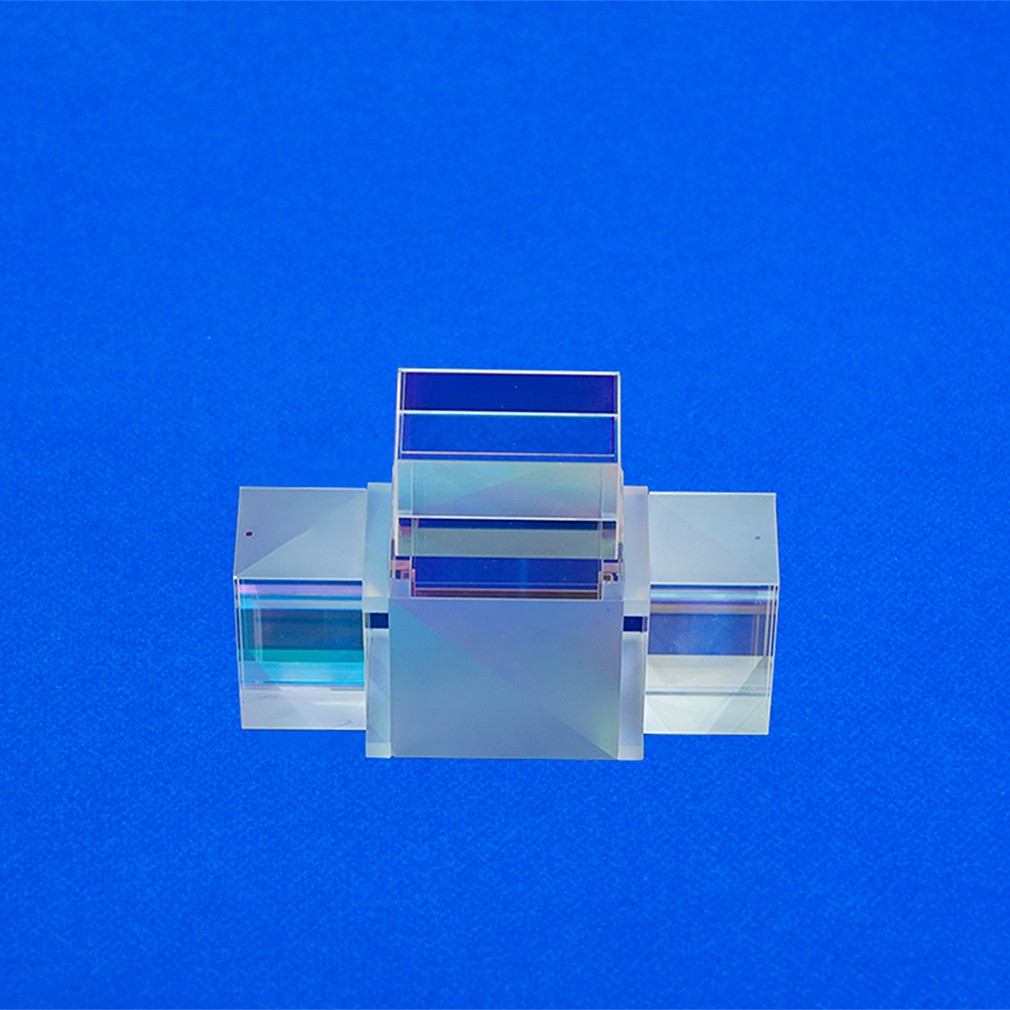

X-CUBE Series
Technical Specifications
Material: H-K9
Size Range: □3~□80mm
Dimension Tolerance: ±0.05mm （Can be customized according to customer needs）
Surface Quality: 40-20 （Can be customized according to customer needs）
Surface Figure:λ/2(632.8nm) / R/B Bonding Surface Accuracy 180°±10″
Step Difference<0.003mm per Reflective Surface
Center Line:<<0.005mm
Coating: Spectral Characteristics （Customized per Customer Requirements）

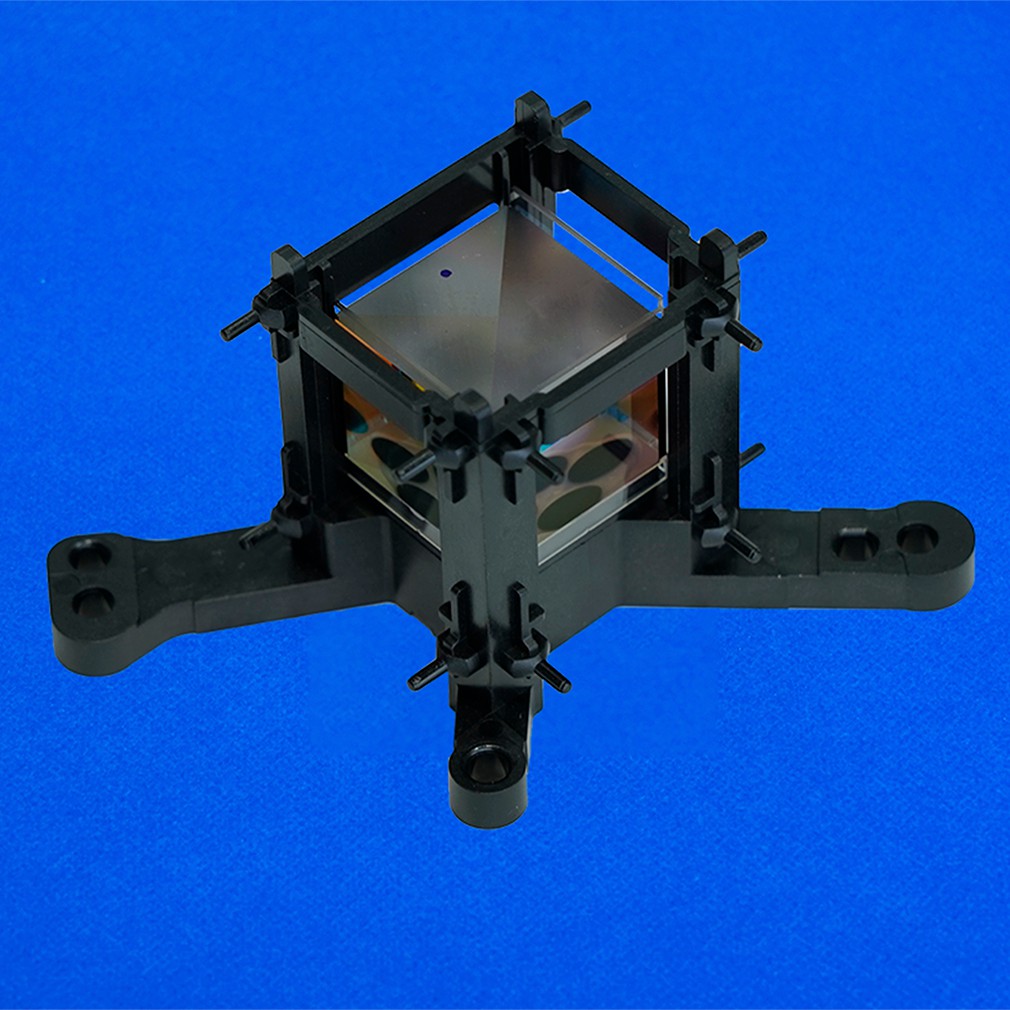

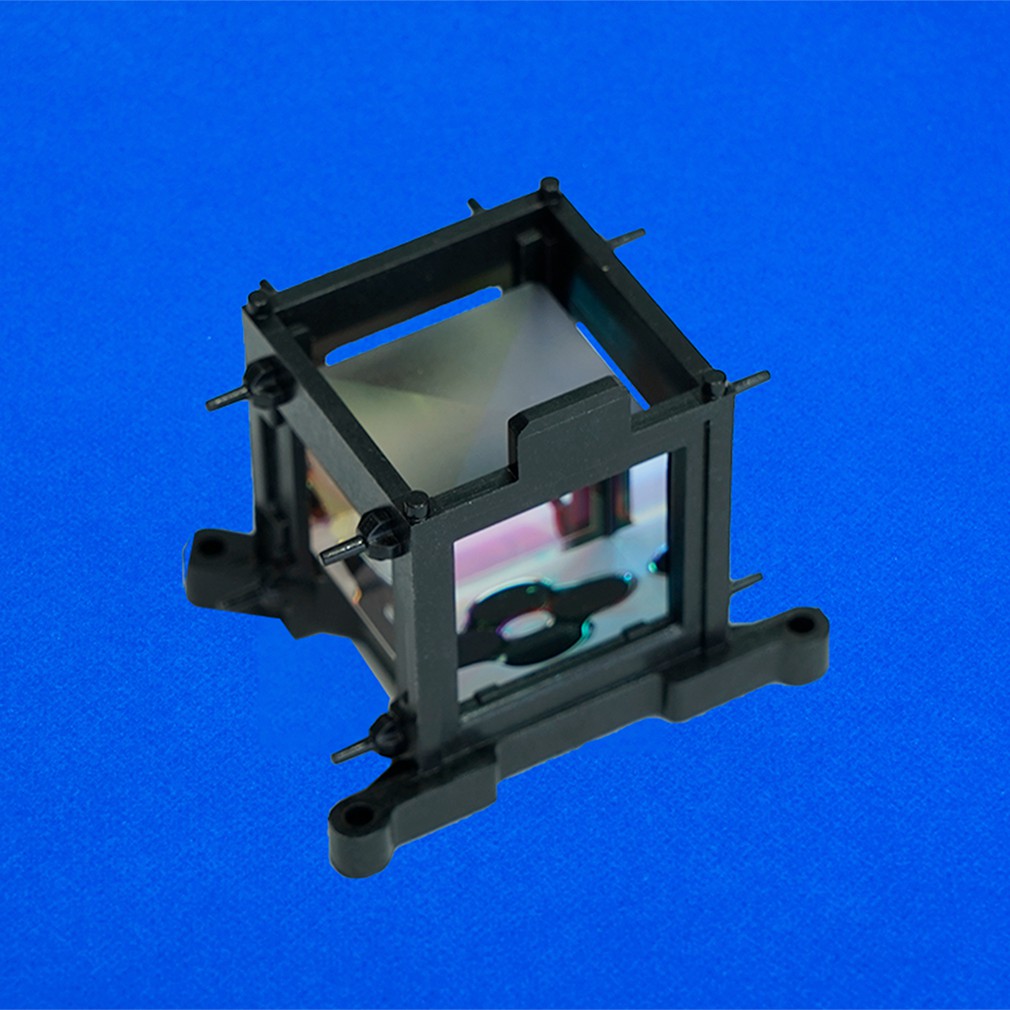

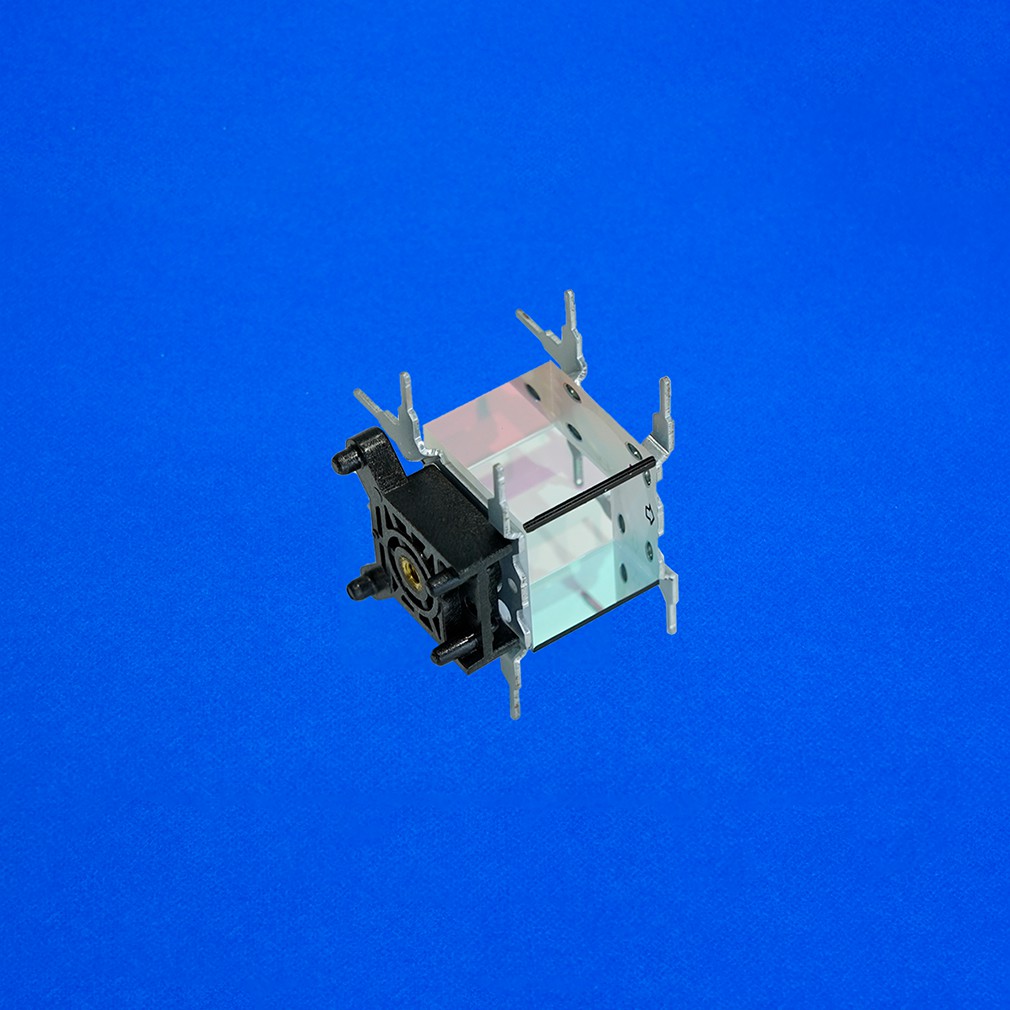

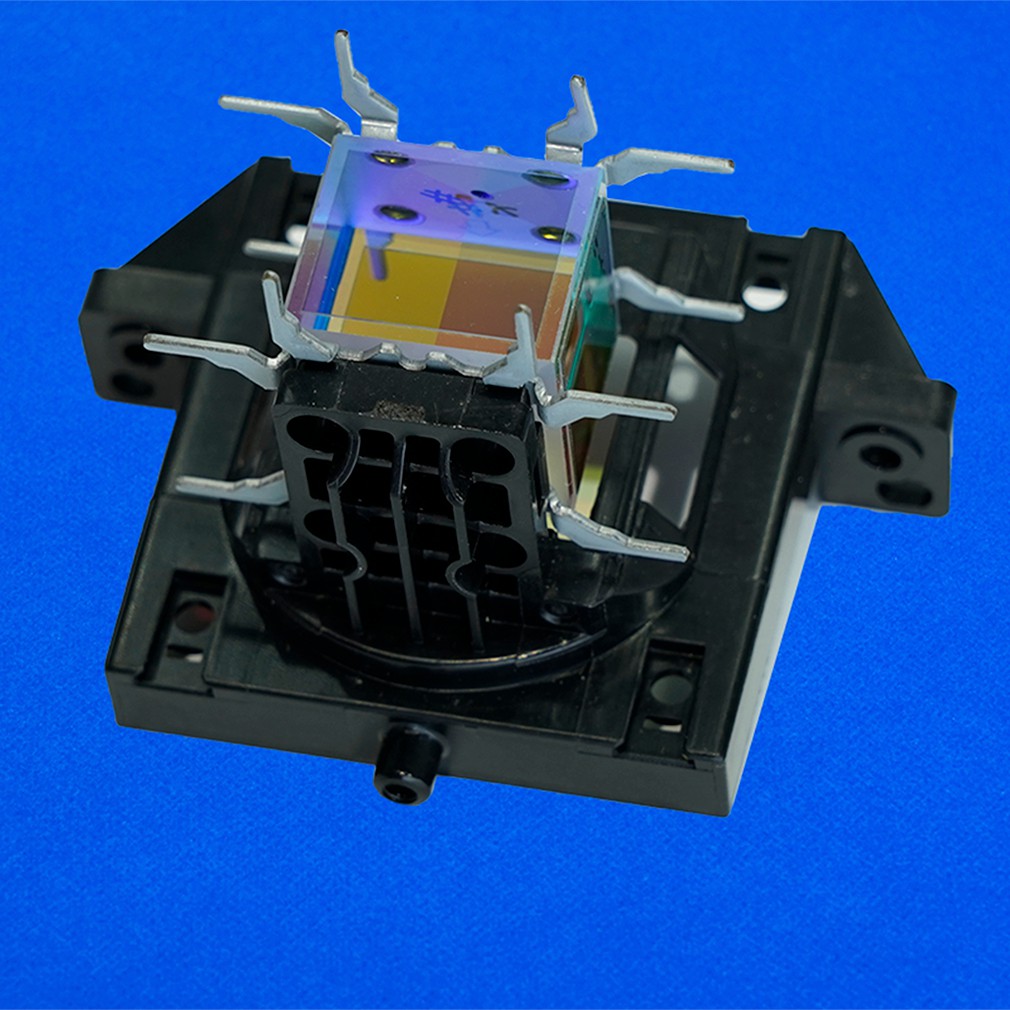

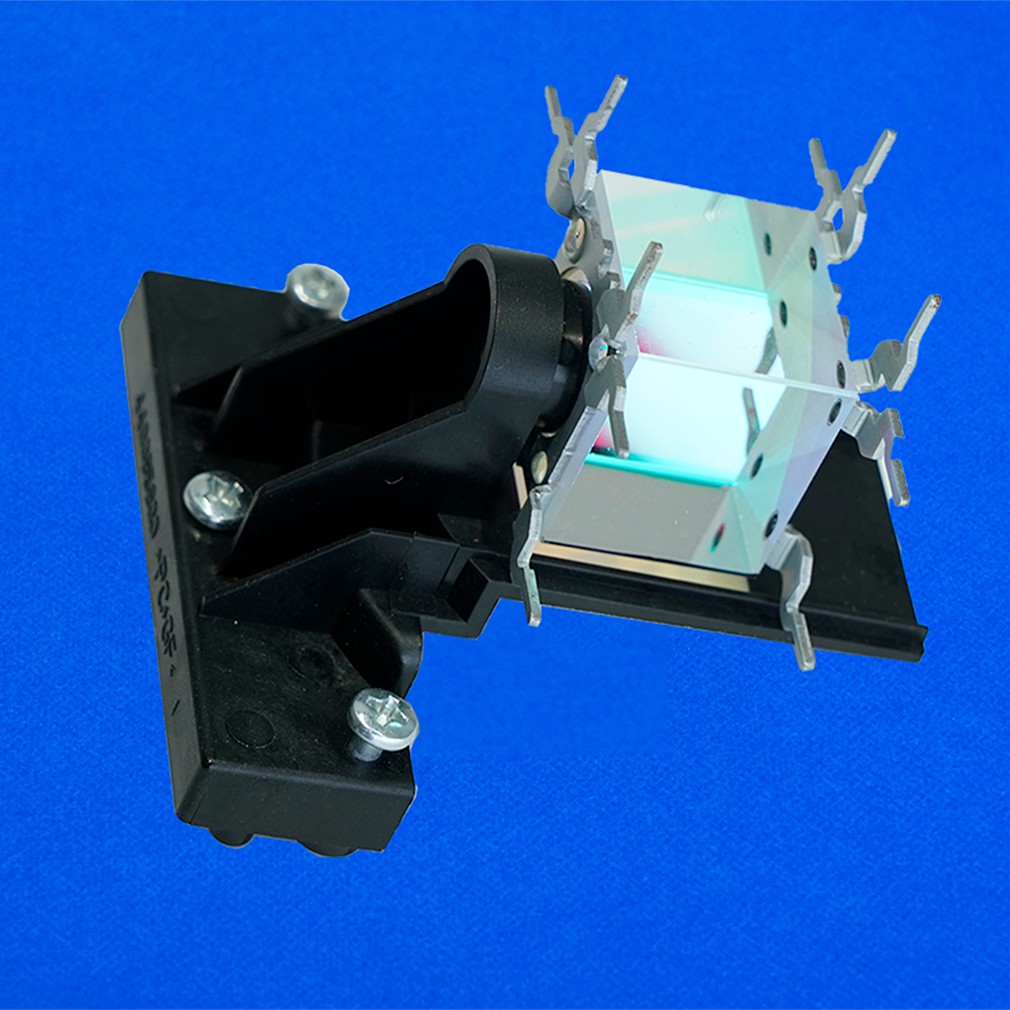

Surface Bonding Components: Compensation Plate, Polarization Plate, Crystal Plate, Wavelength Plate, Metal Bracket, Base, etc.
Product Applications

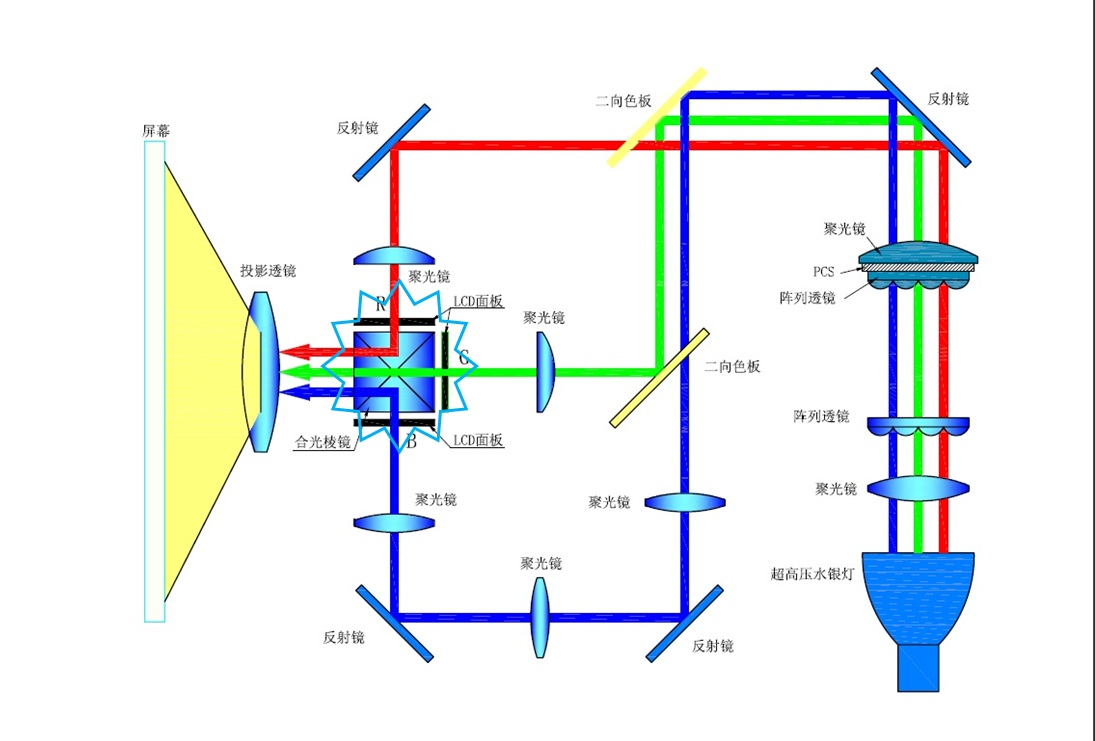

3LCD/LCOS Projectors, VR/AR, Medical treatment

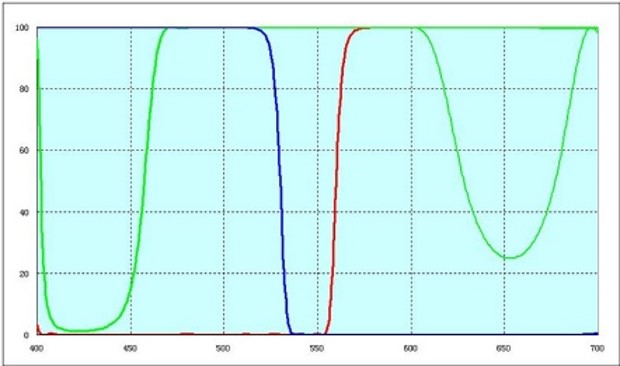

Spectral characteristics (for reference)
