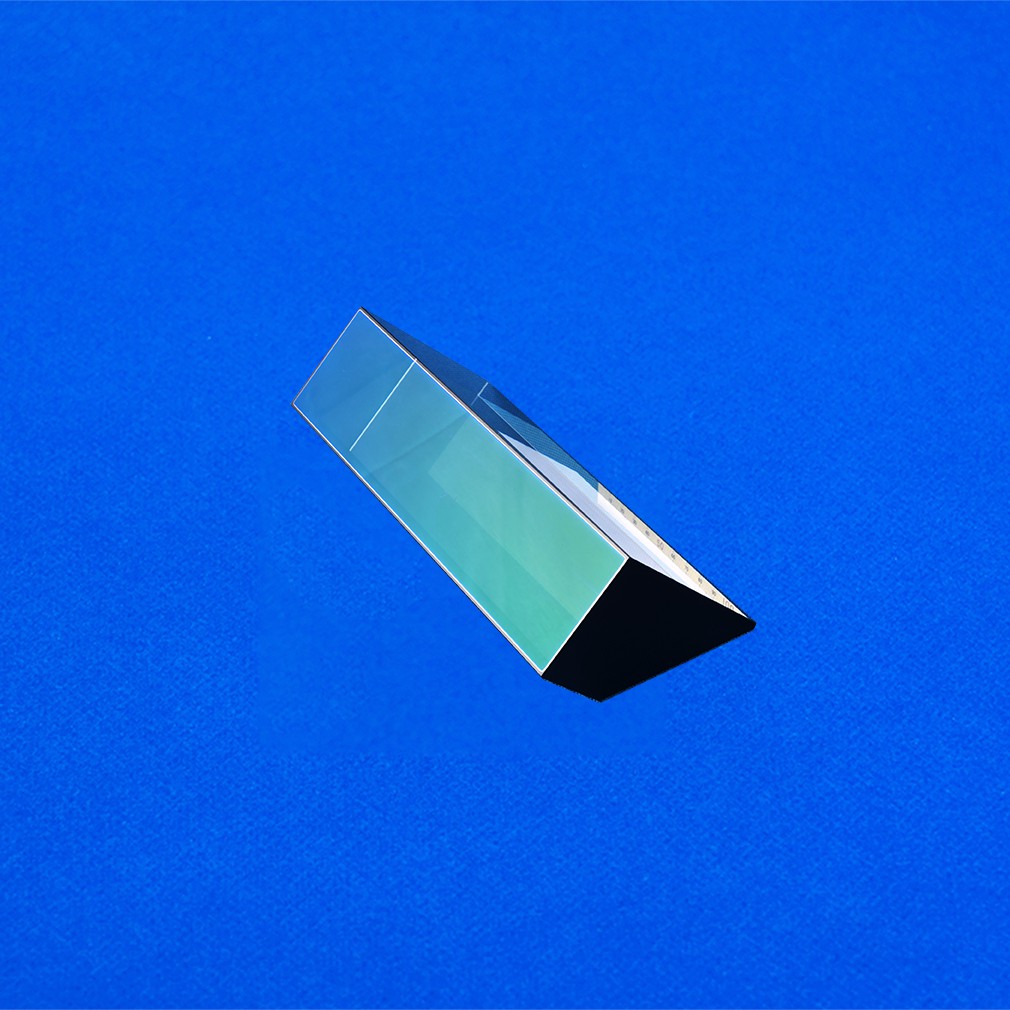

Right/Variable Angle Prism Series
Technical Specifications
Angular Tolerance: Max 3′
Parallelism: ≤3′
Angular Accuracy: 3′
Size Range & Tolerance:□1~□140mm,
Tolerance ±0.05mm
Optical Performance Parameters
Bubbles: 1/5*0.1
Surface Accuracy:
Effective Area: N=1.5, △N=0.5(Can be customized according to customer needs)
Non-Effective Area: N=3, △N=1
Material & Surface Parameters
Material: H-K9, H-ZK10, H-LaK52
Surface Quality:20-10(Can be customized according to customer needs)
Coatings: AR Coating, Beam Splitter Coating, PBS Coating, etc.
Blackening: As per customer requirements
Product Applications
Optical Equipment: Widely used in CD/DVD/BDVD laser read heads for reflection/refraction; endoscopes, microscopes, laser alignment, medical instruments; TOF periscope cameras, smart wearables; cinema projectors; spectroscopy (untreated), multispectral laser system adjustment (coated).
Optical Communication: Applied in optical communication field. Coated and bonded to form color-combining prisms and PBS prisms for rear projection TVs.

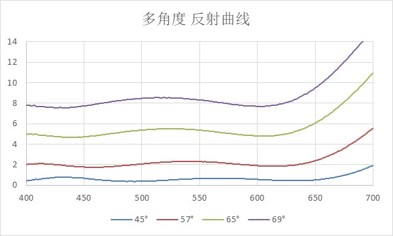

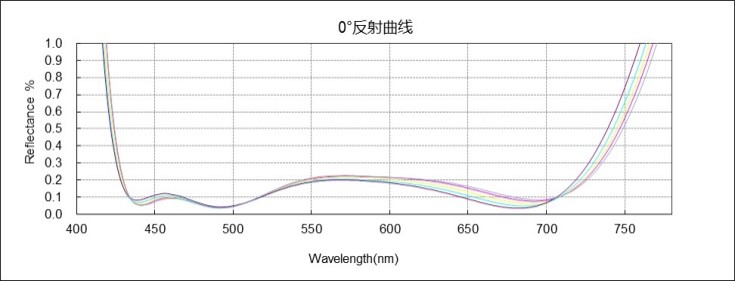

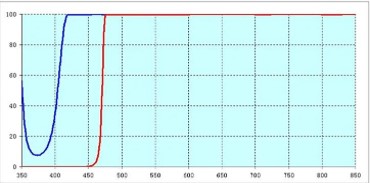

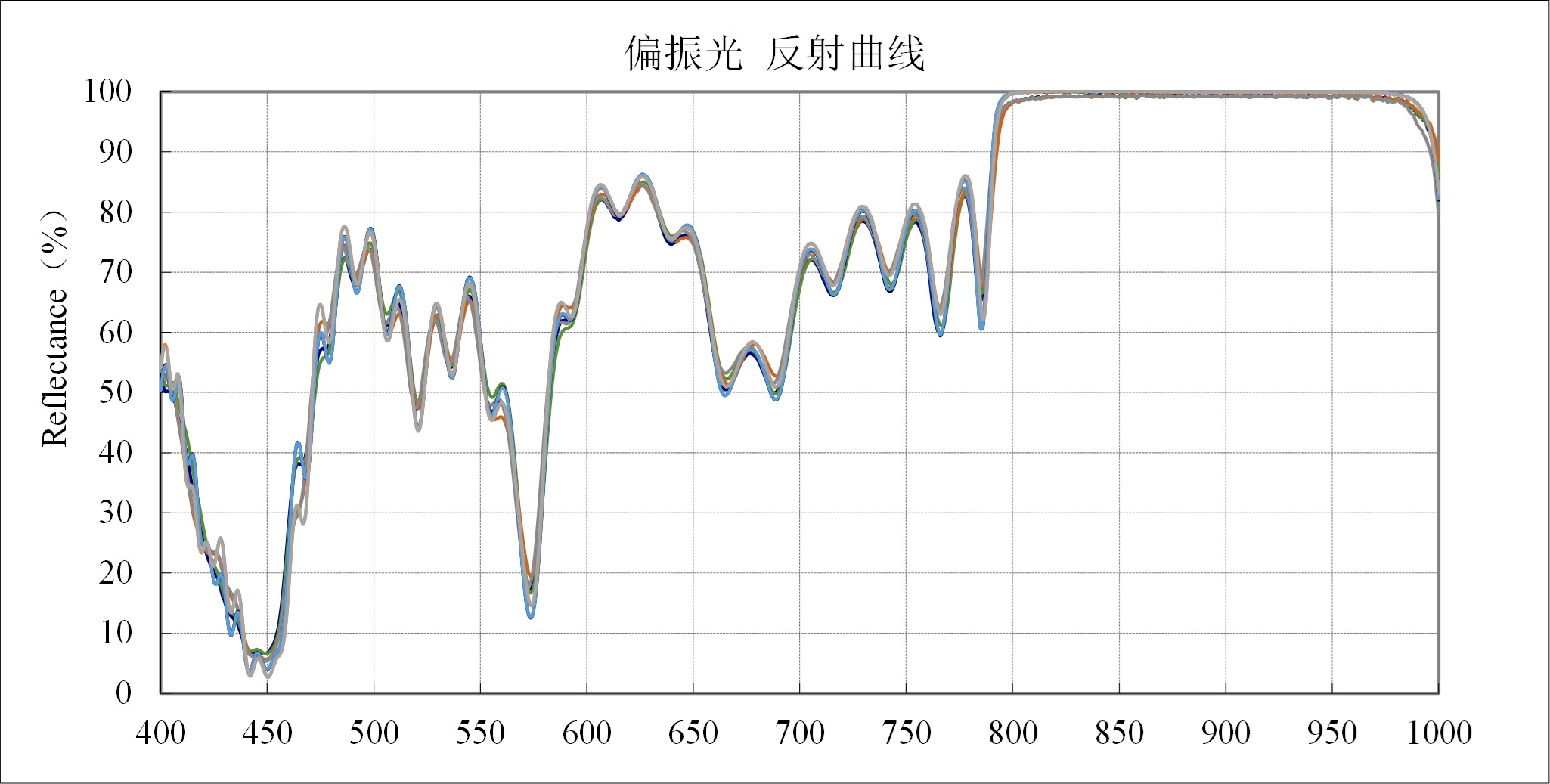

Spectral characteristics (for reference)
