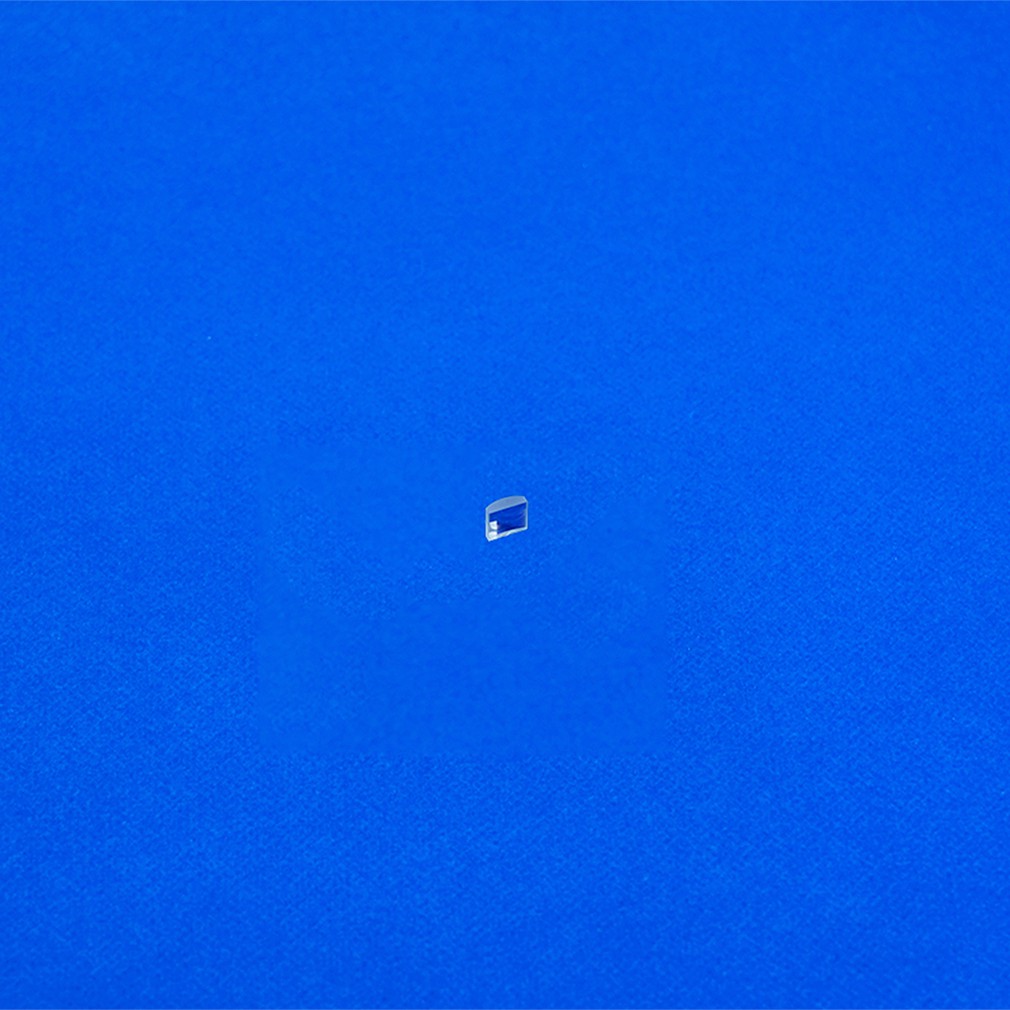

Cylindrical Lens Series
Technical Specifications
PV value: < 30μm(Can be customized according to customer needs)
Central tolerance: ±0.05
Centering error tolerance: ±0.05
Surface accuracy: All N=5, △N=1(Can be customized according to customer needs)
Coating requirements: Both sides with MAR coating, 0° incidence,
T(abs) > 98.5% @ 465nm
T(abs) > 99% @ 525nm and 648nm
T(avg) > 99% @ 450-480nm & 510-540nm & 630-670nm
R(abs) < 0.5% @ 525nm
(The above is for reference only and can be customized according
to customer requirements)
Product Applications
Widely used in laser beam shaping, optical measurement, imaging
systems, optical communication, research, etc. Includes laser
modules, test instruments, positioning devices,slow-axis collimators,
laser rangefinders, laser levelers, laser projectors,laser pointers,
barcode scanners, laser sights, medical instruments,analyzers,
laser levels, power tools, stage lighting, and landscape projects.

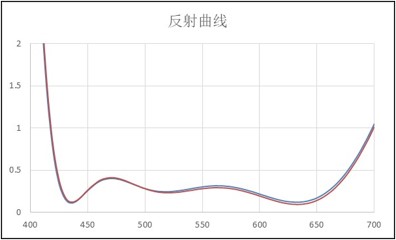

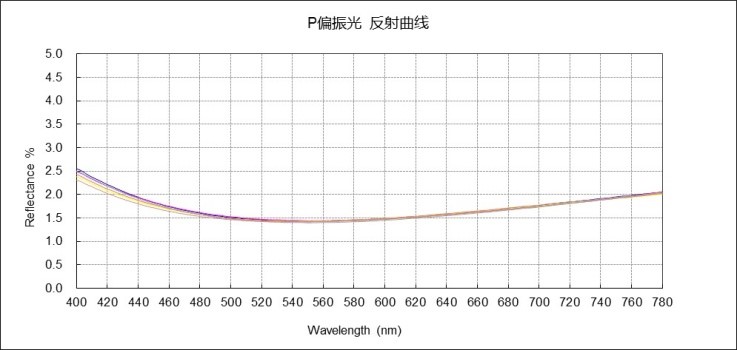

Spectral characteristics (for reference)
