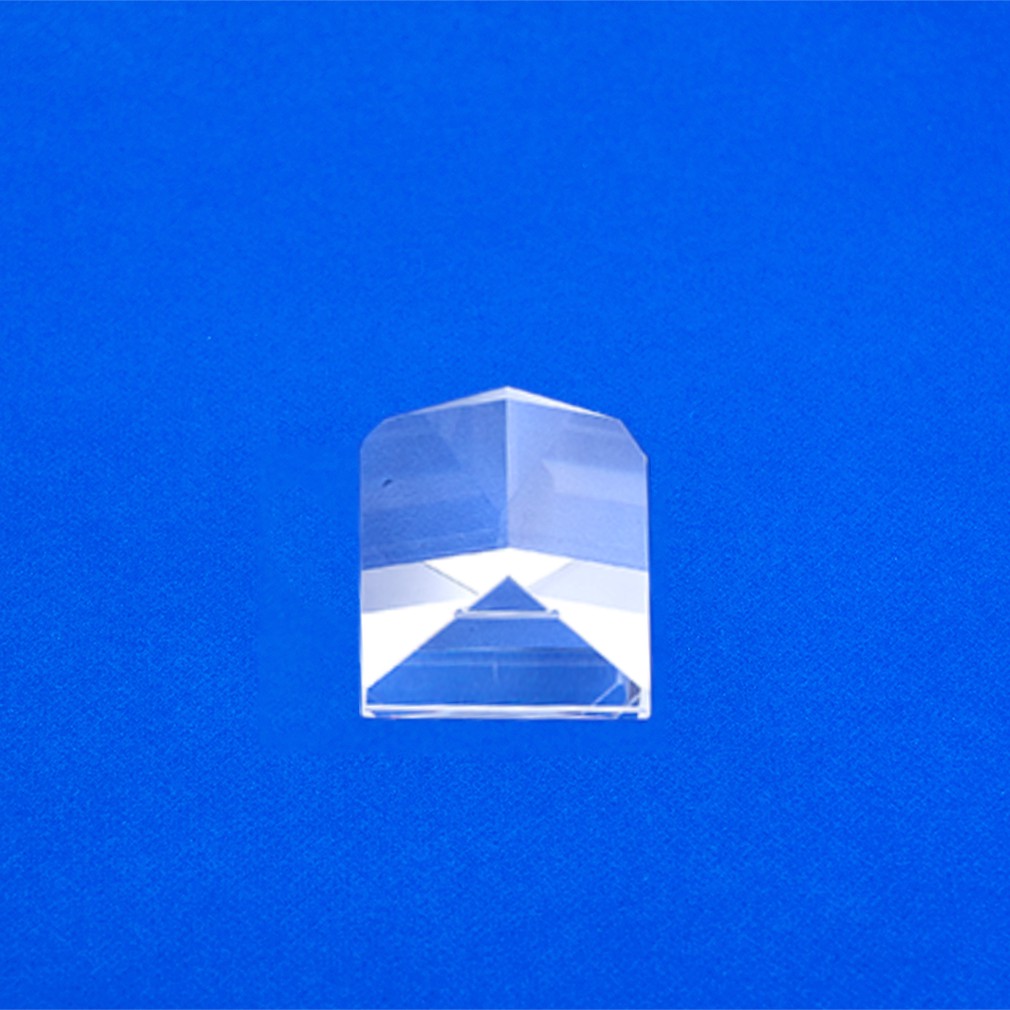

Corner Cube Series
Technical Specifications
Size Tolerance: Side Length ±0.02mm, Height 0/-0.01mm, Other Dimensions Tolerance: ±0.1mm.
Angle Accuracy: Rafter Angle 1″(Can be customized according to customer needs)
Surface Quality: 20-10(Can be customized according to customer needs)
Surface Accuracy: N=2, △N=0.5, N=0.5.
Coating Requirements:
Blackening: The peripheral surface and three conical surfaces require blackening.
Product Applications
Medical fields such as endoscopic systems, ophthalmic instruments,
and laser therapy equipment. Microscope, telescope eyepiece.
Interference measurement, axis calibration, distance measurement,
laser tracking, precision calibration

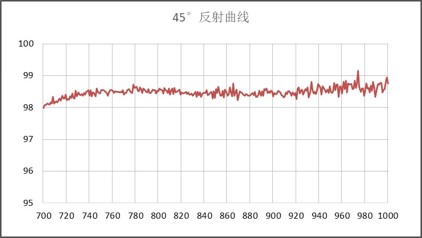

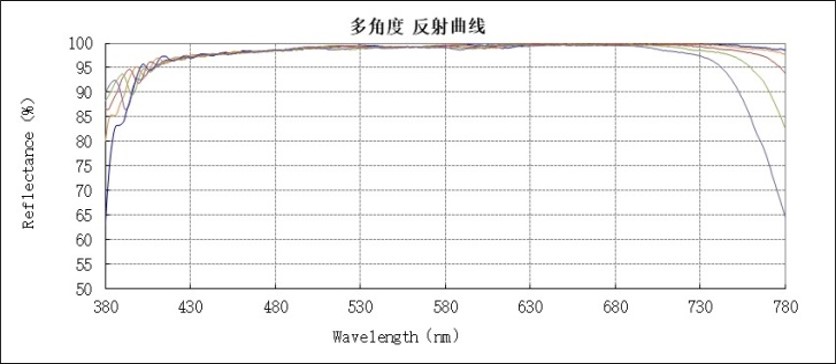

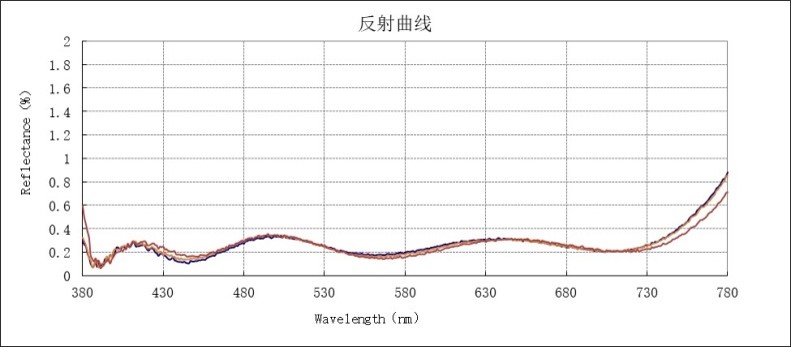

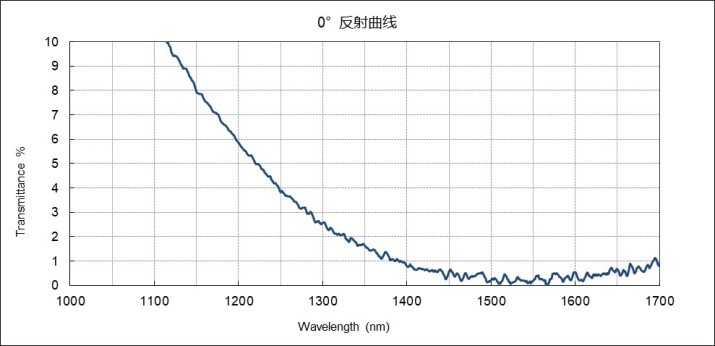

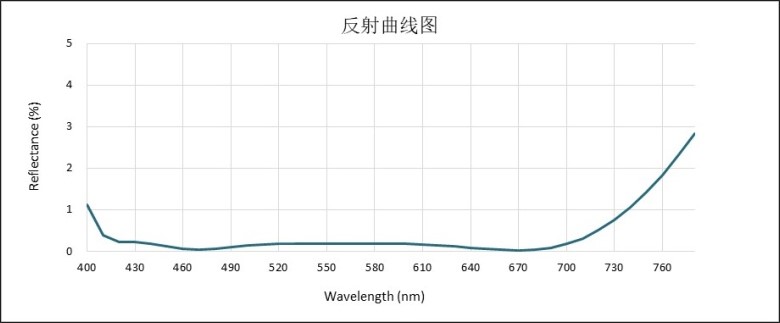

Spectral Characteristics
(for reference)
